WillmarLube TECHNOLOGY
| 3:1 Ratio Oil Pump Assembly for a 5 Gallon Pail | PAYPAL |  |
 |
We make it EASY for you to do business with Willmar Lube Technology |
|---|---|---|---|---|
| PRICE | AVAILABILITY | SELECTION | CONVENIENCE | Mail: Willmar Lube Technology |
| 4 ways to Order!! | Fax: 1-616-676-1287 | TEL: 1-616-676-1792 | Email:sales@willmarlube.com | P.O. Box 456, Ada, MI. 49301 |
DESCRIPTION |

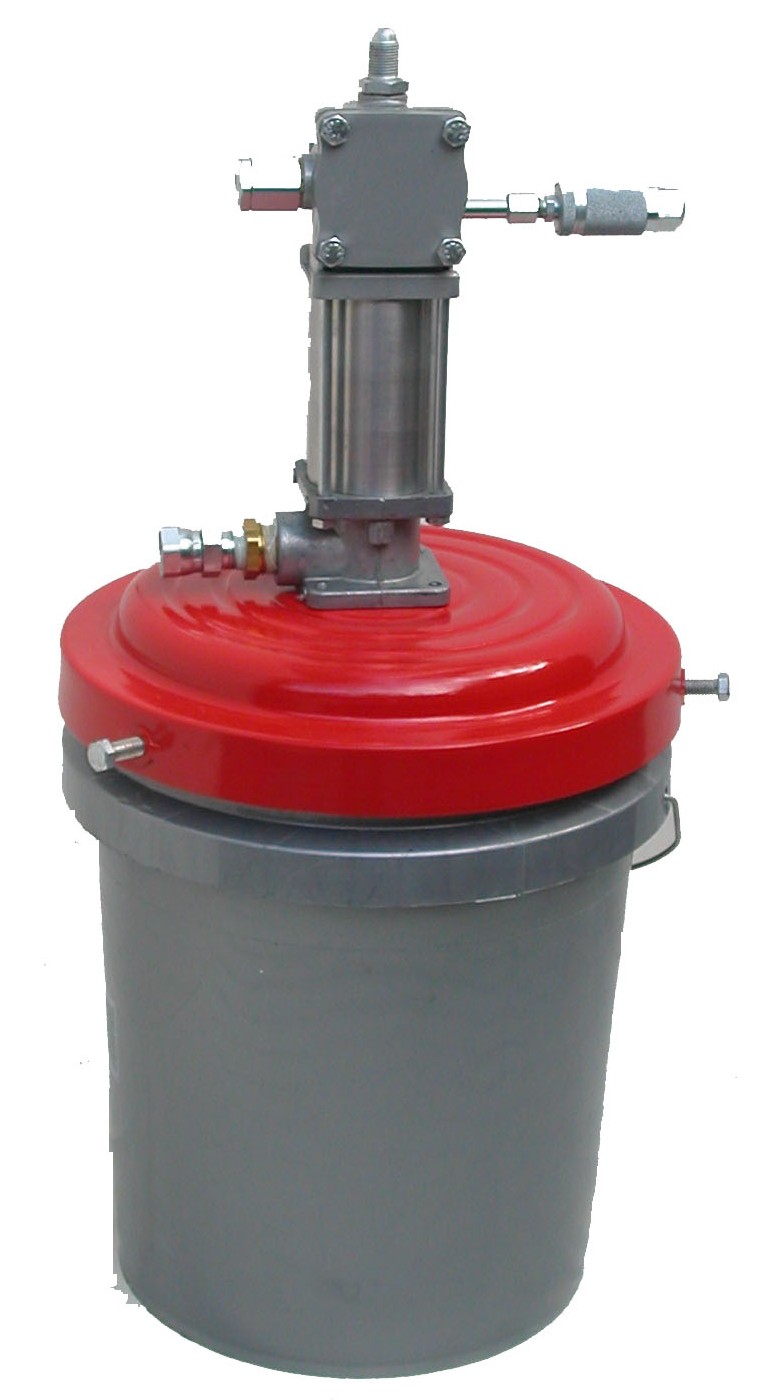

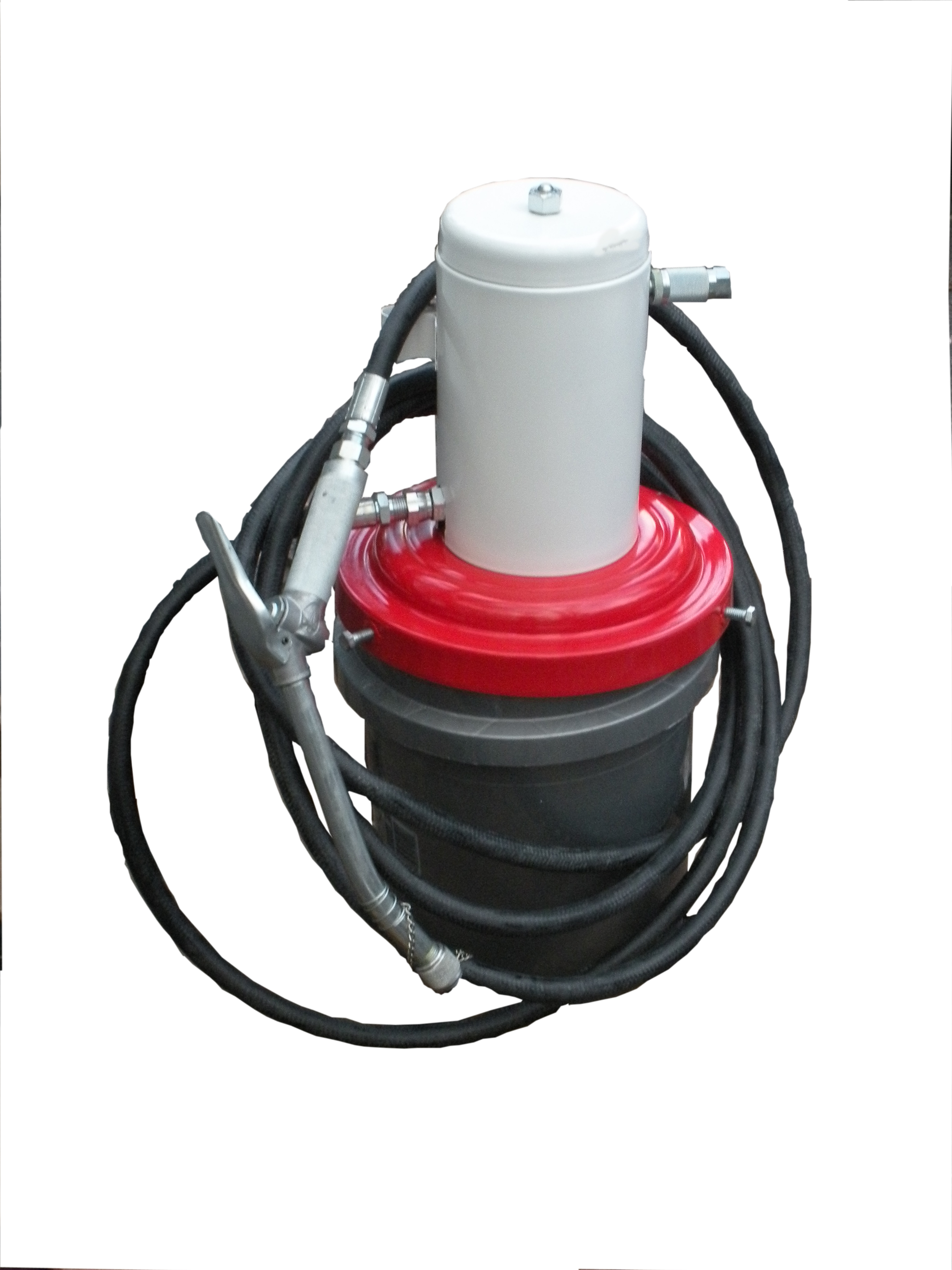

LT82398MCO-20FT-775ME |
| 5 Gallon Pail Air Operated
Pump Assembly with Cover 1. Includes 3:1 Double Acting Low Pressure Stub Pump(LT82398M) 2. Rapid Disconnect Coupler(815ME) 3. Air Nipple(11660ME) & Ext Tube (10181ME) 4. Muffler(LT2601ME) 5. 5 GAL 19 Liter Cover Painted in Red (45899ME); Clamps to a 5 Gallon Pail. 4 screws affix the cover to the base of the pump. 6: Air Hose: 1/4" x 3ft(.92mtr); Oil Hose 1/2" x 20ft (6.1mtr) 7: High Volume Control Valve: 775ME with Rigid Extension. 8.Air Motor Cover(91407ME) 9. Air Inlet: 1/8"NPT(f); Lubrication Outlet: 3/4"NPT(f)(1.90CM) 10. Pump Tube Diameter: 1-7/8"(4.76CM); Pump Tube Length 12-1/4"(31.1CM); Air Motor Height: 11.0"(27.94cm); Overall Height: 25-1/2"(64.8CM). 11. Output: 4 Gallons/minute (15.1LTRS/MIN)(Free Delivery) 12: Recommended Air Pressure is 80 to 100 PSI with Regulator. 13. Replacment Pump with cover made to fit a 5 Gallon (19 Liter) Pail. 14. One Year Warranty against Materials, Workmanship and Labor 15: Application: Pump oil from a 5 Gallon Pail (Container Not Included) 16. Additional Accessories Available: LT780ME Gear Oil Control Valve 1/2" NPT(f); Includes:82067ME Shut-Off Valve with built-in Swivel and 82070ME Non-Drip Nozzle Extension. Maximum Operating Pressure 1000PSI. LT775ME: HD Volume Oil Control Valve 1/2" NPT(f); Includes 82906ME Shut-Off Valve and 82932 Rigid Extension Nozzle; Maximum Operating Pressure 1000PSI. 17. Complete Repair Kits Available: R83071ME: Simple Repair Kit for Oil Pumps LT82398M R83000ME: Air Motor Repair Kit for LT82398M 18. Other Information: Weight and Dimensions: BOX Weight: 17LBS (7.71KG) BOX DIM: Length: 14"(35.6cm)XWidth:13"(33.0cm)XHeight: 26"(66.1cm) 19: Price. 20: Download LT82398MCO-20FT-775ME PDF file. |
 |
 |
Return to Lube Technology Equipment Menu
For Additional Information or Technical Information, send us an email from this web page at the address below. Please specify the Model Number. Please include your name, address, city, state, zip, Telephone Number and Fax Number in the email and we will send you the requested Information.
Contact us by mail or fax at:
Address: Lube Technology/Willmar International
P.O. Box 456
Ada, MI. 49301 USA
TELEPHONE: 1-616-676-1792
