DESCRIPTION |
LT82398MCO-10FT-769ME |

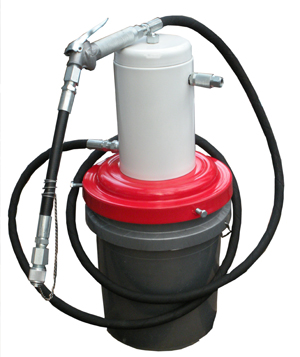

| 5 Gallon Pail Air Operated
Pump Assembly with Cover 1. Includes 3:1 Double Acting Low Pressure Stub Pump(LT82398M) 2. Rapid Disconnect Coupler(815ME) 3. Air Nipple(11660ME) & Ext Tube (10181ME) 4. Muffler(LT2601ME) 5. 5 GAL 19 Liter Cover Painted in Red (45899ME); Clamps to a 5 Gallon Pail. 4 screws affix the cover to the base of the pump. 6: Air Hose: 1/4" x 3ft(.92mtr); Oil Hose 1/2" x 10ft(3.1mtr) 7: High Volume Control Valve: 769ME with Flex Hose Extension. 8.Air Motor Cover(91407ME) 9. Air Inlet: 1/8"NPT(f); Lubrication Outlet: 3/4"NPT(f)(1.90CM) 10. Pump Tube Diameter: 1-7/8"(4.76CM); Pump Tube Length 12-1/4"(31.1CM); Air Motor Height: 11.0"(27.94cm); Overall Height: 25-1/2"(64.8CM). 11. Output: 4 Gallons/minute (15.1LTRS/MIN)(Free Delivery) 12: Recommended Air Pressure is 80 to 100 PSI with Regulator. 13. Replacment Pump with cover made to fit a 5 Gallon (19 Liter) Pail. 14. One Year Warranty against Materials, Workmanship and Labor 15: Application: Pump oil from a 5 Gallon Pail (Container Not Included) 16. Additional Accessories Available: LT780ME Gear Oil Control Valve 1/2" NPT(f); Includes:82067ME Shut-Off Valve with built-in Swivel and 82070ME Non-Drip Nozzle Extension. Maximum Operating Pressure 1000PSI. LT775ME: HD Volume Oil Control Valve 1/2" NPT(f); Includes 82906ME Shut-Off Valve and 82932 Rigid Extension Nozzle; Maximum Operating Pressure 1000PSI. 17. Complete Repair Kits Available: R83071ME: Simple Repair Kit for Oil Pumps LT82398M R83000ME: Air Motor Repair Kit for LT82398M 18. Other Information: Weight and Dimensions: BOX Weight: 17LBS (7.71KG) BOX DIM: Length: 14"(35.6cm)XWidth:13"(33.0cm)XHeight: 26"(66.1cm) 19: Price. 20: Download LT82398MCO-10FT-769ME PDF file. |
 |
 |
