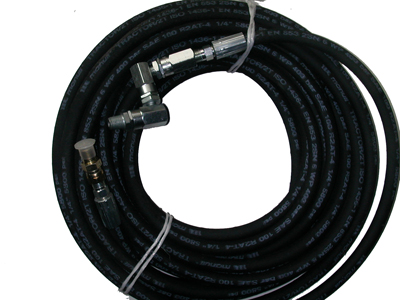

50FT(15.2mtrs) X 1/4" HP GREASE HOSE

1: 50FT(15.2mtrs) x 1/4" High Pressure Grease Hose(1/4"NPT(m) X 1/4"NPT(m)); Fits on all Grease Pumps & Equivalents
2: Hose Type: High Pressure SAE100R2A
3: Specifications: Inside Diameter: 1/4";Outside Diameter: 11/16"
4: Thread  1/4" NPT Male
5: Braid: 2 Ply Wire

6: Maximum Pressure: Working Pressure: 5000PSI (340 BAR)
7: Burst Pressure:  20000PSI   (1360 BAR)
8: Gates Hose: Working Pressure: 5000PSI (340 BAR)
9: Manullii:  SAE100R2AT-4;  DIN 2SN6
10: Working Pressure: 5800PSI  (400 BAR)

11:Includes Two Accessories:

LT5253ME; High Pressure "Z" Swivel for all Pneumatic Grease Pumps; "Z" Swivel 1/4" NPT(M) x 1/4" NPT(F); For use with High Pressure Control Valve LT740ME to reduce operator fatigue;

LT66645ME: High Pressure Locking Straight Swivel for all Pneumatic Grease Pumps;Straight Swivel 1/4"NPT(f) x 1/4"NPT(m) X Length 1-3/8"; For use with High Pressure Pumps; Threads to the outlet port of the pump; Prevents twisting the delivery hose to thread a connection onto the pump

12: Application: High Pressure Grease Pumps
13: BOX Weight: 15LB (6.8KG)
14: BOX Dimensions: 12" (30.1CM) X 12" (30.1CM) X 4" (10.2cm)

15: Price
16: Download PDF file on LT75600ME.
