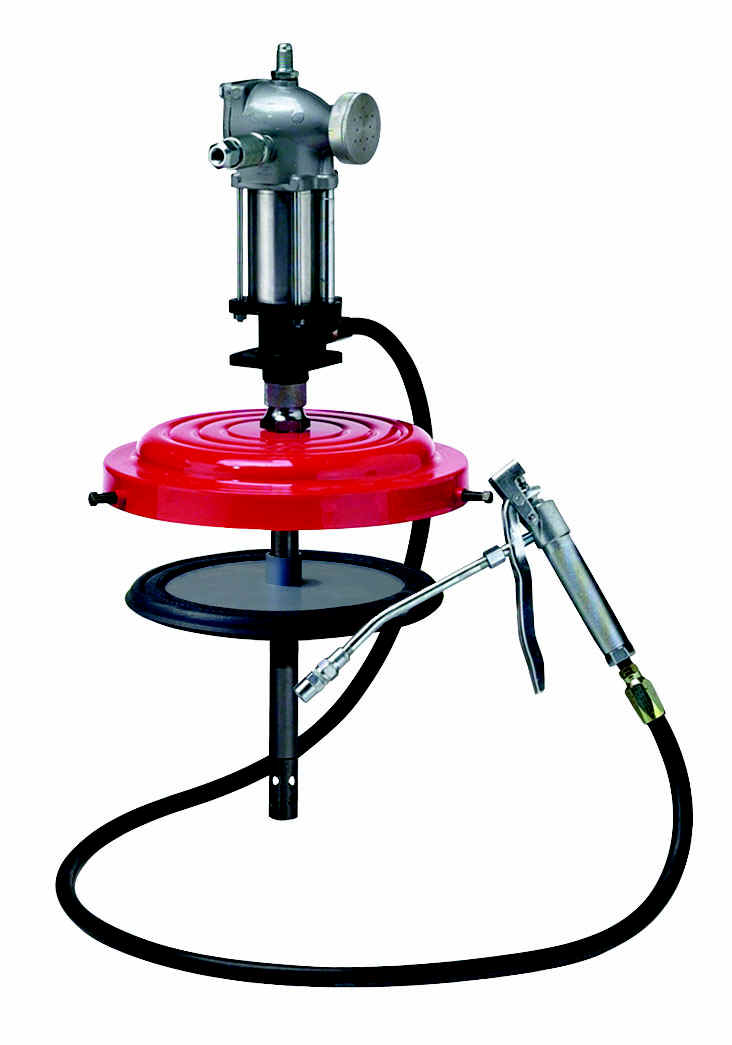

1. Includes 50:1
Double Acting High Pressure Pump(LT82716ME; provides uniform pressure and delivery
on the up and down stroke.
2. 6'(1.85mts) High Pressure Grease Delivery Hose(LT75072ME)
3. Grease Delivery Control Valve(LT740ME)
4. Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME); Air Motor Muffler(LT2601ME)
5. Pump SPECS: Pump Tube Length 15-3/4"(40.01cm) &
Diameter 1.0"(2.54CM) made for 25LB(11.3KG)-50LB(22.7KG) Pails and Drums; Air Motor
Height: 11.0"((27.94CM); Overall Height: of Unit: 26-3/4"(67.9CM).
6. Follower Plate (LT91500ME) w/ Rubber Outer Wiping Ring for
Conical Pails; (Downtube Insert: 1.0"(2.54CM) Diameter); assures positive prime and
vaccuum at low temps (prevents cavitation)
7. Other Follower Plates Available: LT84775ME Molded Rubber
Follower Plate (Insert Diameter 1.0"(2.54CM)); LT91500M: Solid Steel Follower Plate
(Diameter 1.0"(2.54CM)).
8. Steel Drum Cover with screw downs and Knurl and Coupler
assembly to adjust Height to accomodate Pails from 25-50 lbs capacity (91144M). (Drum
Cover Opening 1-1/4"(3.175CM)) Cover Diameter: 12-5/8" (32.07CM)
9: Height Adjuster (coupler) for the drum cover to adjust the
level of the pump in the pail if needed.
10. Output: 80cu in/minute of grease at 100PSI of NLGI #2 at
70 Degrees ambient Temperature (.35cu in/cycle)
11. Air Inlet 1/8"NPT(f); Lube
Outlet: 1/4"NPT(f);
12. These High Pressure Grease Pumps incorporate a 20 cu in Air Motor Design.
13. New Downtube Packings made of Tion / Teflon for longer life.
14. MAX Air Pressure: 150PSI;
Recomended: 80-100PSI; MAX Grease Pressure: 7500PSI; Recomended: 5000PSI; Note: Pump
life reduces considerable if operating above the recommended air pressure
15. One Year Warranty against Defective Materials,
Workmanship and Labor.
16. All Pumps are Pressure Tested Statically and Dynamically in Grease for Output,
Pressure, Performance and Quality.
17. Additional Accessories Available: LT82103ME Grease
Strainer for Pump Tube; LTA5253ME "Z" Swivel for the Control Valve; LT84191ME
Roll-A_Around Band Dolly; LT66645ME Locking Swivel 1/4"(m) x 1/4"(f) for Pump
Outlet
18. Optional Hoses Available(See Below):
LT75120ME 10ft X ¼" HP Grease Hose w/ 1/4"NPT(m) couplings
LT75240ME 20ft X ¼" HP Grease Hose w/ 1/4"NPT(m) couplings
LT75360ME 30ft X ¼" HP Grease Hose w/ 1/4"NPT(m) couplings
LT75480ME 40ft X ¼" HP Grease Hose w/ 1/4"NPT(m) couplings
LT75600ME 50ft X ¼" HP Grease Hose w/ 1/4"NPT(m) couplings
19. Complete Repair Kits
Available:
R83054M: Simple Repair Kit for Grease Pumps LT 82716ME;
R83054ME: Complete Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82716ME;
R83001ME: Down Tube Repair Kit for LT82716ME;
20. Other Information: Weight and
DIMS: BOX Weight: 28LBS (12.7KG)
BOX DIMS: Length: 28.0"(71.2cm) X Width:14"(25.6cm) X Height: 6-
1/2"(16.5cm)
21: Price
22: Download LT989-500ME
pdf file
