| DESCRIPTION | LT987M |

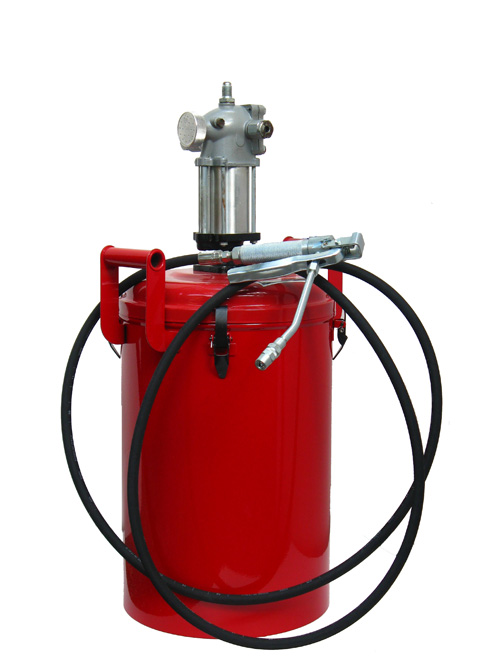

| Contractor Pump Assembly with Steel
Container, Grease Pump Assembly (self enclosed unit) 60LB Bulk or 25Lb to 50 Lb Pails 1. Includes 50:1 Double Acting High Pressure Pump(LT83513ME) provides uniform pressure and delivery on the up and down stroke 2: 10'(3.1mts) High Pressure Grease Delivery Hose(LT75120ME) 3: High Pressure Grease Delivery Control Valve(LT740ME) 4: Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME) & Air Motor Muffler(LT2601ME) 5: Steel Container Size: 31-3/4"(80.6CM) High by 12-1/2"(31.8CM) DIA Painted in Red 6: Pump Specifications: Pump Tube Length 18-7/8"(47.9 CM) & Diameter 1.0"(2.54CM); Air Motor height: 11.0"(27.84CM); Overall height of Unit: 29-7/8"(75.8CM); 7: Follower Plate Optional and should be ordered separately. 8: 4 Rigid Steel Clamps that clamp the cover firmly in place on the container 9: Steel Drum Cover with screws that firmly fasten the cover to the base of the pump. 10: Cover Gasket and Air Vent in cover assembly makes the unit dust, leak & spill proof 11: Output: 80cu in/minute (45 oz) of grease at 100PSI of NLGI #2 at 70 Degrees ambient Temperature (.35cu in/cycle) 12: Air Inlet 1/8"NPT(f); Lube Outlet: 1/4"NPT(f); 13: These High Pressure Grease Pumps incorporate a 20 cu in Air Motor Design 14: Application: Construction Sites, Maintenance, where contamination is a major problem and portability is a priority. Excellent in all types of Weather & Dusty Conditions 15: New Downtube Packings made of Viton / Teflon for longer life 16: Maximum Air Pressure: 150PSI; Recomended: 80-100PSI; Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI; Note: Pump life reduces considerably if operating above the recommended air pressure. 17: One year Warranty against Defective Materials, Workmanship and Labor 18: All Pumps are Pressure Tested Statically and Dynamically in NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality. 19: Additional Accessories Available: LT82103ME Grease Strainer for Pump Tube; LTA5253ME “Z” Swivel for the Control Valve; LT66645ME Locking Swivel 1/4"(m) x 1/4"(f) ; 20: Optional Hoses Available(See Below): LT75120ME 10ft(3.04mtrs) X ¼” High Pressure Grease Hose w/ 1/4" NPT (male) LT75240ME 20ft (6.09 mtrs)X ¼” High Pressure Grease Hose w/ 1/4" NPT (male) LT75360ME 30ft ((9.14mtrs)X ¼” High Pressure Grease Hose w/ 1/4" NPT (male) LT75480ME 40ft (12.2mtrs)X ¼” High Pressure Grease Hose w/ 1/4" NPT (male) LT75600ME 50ft (15.2mtrs) X ¼” High Pressure Grease Hose w/ 1/4" NPT (male) 21: Complete Repair Kits Parts Available: R83054M: Simple Repair Kit for Grease Pumps LT83513ME R83000ME: Air Motor Repair Kit for LT83513ME R83001ME: Down Tube Repair Kit for LT83513ME 22: Easy Carry Handles welded to the side of the container for easy transport 23: Other Information: Weight and Dimensions: BOX Weight: 40LBS (18.1KG); BOX DIMS: Length: 18"(45.7cm) X Width:16"(40.6cm) X Height: 32"(81.3cm) 24: Price 25: Download PDF file. |
 |
