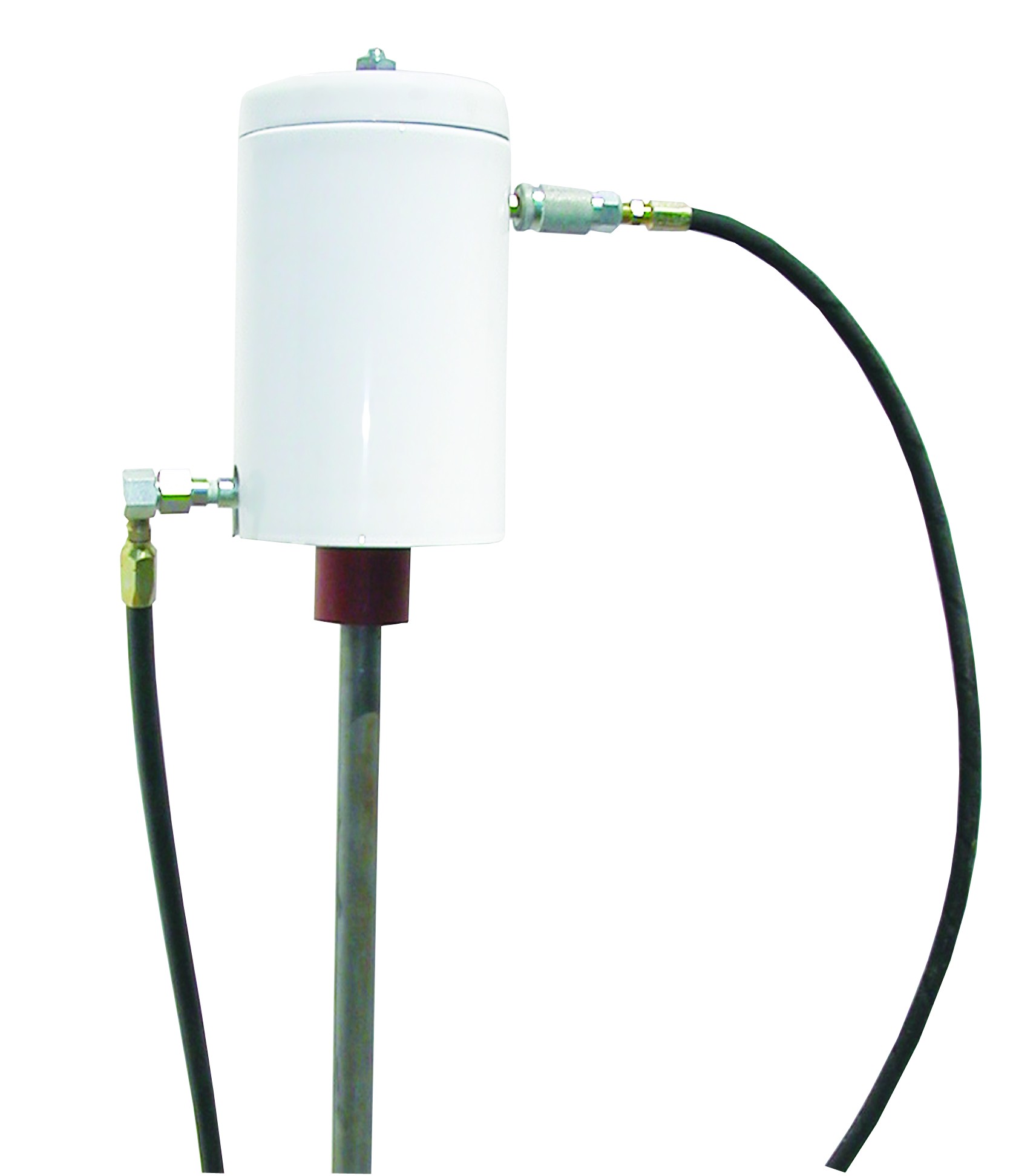

400LB(55 Gallon)(181.4KG) Drum Grease Pump Assembly: Includes: (Unit does not
include Drum Cover (LT81523ME))
1: 50:1 Double Acting Heavy Duty High Pressure Pump (LT82054ME) provides uniform pressure
and delivery on the up and down stroke
2: Rapid Disconnect Air Coupler (815ME) & Air Nipple (11660ME) 1/8"(M)
3: 3ft (.92mtrs) x 1/4" Air Connecting Hose (LT72036ME)
4: 4ft (1.23mtrs) High Pressure Grease Hose(LT75048ME)
5: High Pressure Volume Union Elbow 1/4"(F) x 1/4"(M) (82202ME)
6: Air Inlet 1/8" NPT (F); Lube Outlet: ¼" NPT (F)
7: Steel Pump Cover (White)(91369ME) & Air Motor Muffler (LT2601ME)
8: Pump Specifications: Pump Tube Length 33-15/16" (86.20CM) made for 400 lb Drum
& 1.0" (2.54CM)Diameter; Air Motor Height: 11.0"(27.94CM); Overall Height of
Unit: 44-15/16"(114.2CM)
9: The LT82054ME high pressure Grease Pump incorporates a 20 cu. in. air motor design.
10: Output: 80 cu in/minute (45 oz) of Grease at 100PSI NLGI#2 at 70 Degrees ambient
temperature (.35cu in/cycle)
11: New Downtube Packings made of Viton / Teflon for longer life
12:
Maximum Air Pressure: 150PSI; Recomended: 80-100PSI; Maximum Grease Pressure: 7500PSI;
Recomended: 5000 PSI; Note: Pump life reduces considerably if operating above the
recommended air pressure.
13: One Year Warranty against Defective Materials, Workmanship and Labor
14: All Pumps are Pressure Tested Statically and Dynamically in Grease for performance and
output.
15: Additional Accessories Available: LT82103ME Grease Strainer for Pump Tube; Follower
Plate LT83366ME; Does not include follower plate; must order separately
22. Complete Repair Kits & Parts Available(See Below):
R83054M: Simple Repair Kit for Grease Pumps
R83054ME: Complex Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82050ME.
R83001ME: Down Tube Repair Kit for LT82050ME.
21. Optional Hoses Available(See Below):
LT75120ME: 10ft(3.04mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75240ME 20ft (6.09 mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75360ME 30ft ((9.14mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75480ME 40ft (12.2mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT75600ME 50ft (15.2mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m).
LT76480BME; 40FT x 3/8" HP Grease Hose 3/8"NPT(m)Threads
LT76480AME; 40FT x 1/2" HP Grease Hose 1/2"NPT(m)Threads
LT76600BME; 50FT x 3/8" HP Grease Hose 3/8"NPT(m)Threads
LT76600AME; 50FT x 1/2" HP Grease Hose 1/2"NPT(m)Threads
23: Other Information : Weights and
Dimensions: Weight: 26LB (11.8KG) ; Box Dimensions: (Pump): Length:8"(20.3CM) X
Width:11"(27.9CM) X Height: 49-1/2"(125.8CM) .
24: Price
25: Download Complete pdf file
on LT926-1ME
