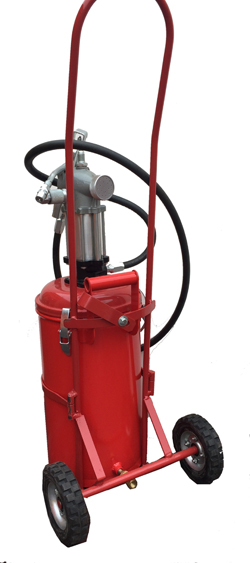

Description: Bulk / Auto Fill Pail Pump
with Steel Container & Hand Truck; Grease Pump Assembly w/ Steel Follower Plate (self
enclosed unit) with 1/4"(f) NPT Threaded Fill Port at the
Container Base 1. Includes
50:1 Double Acting High Pressure Pump(LT82716ME) provides uniform pressure and
delivery on the up and down stroke
2. 6'(1.85mts) High Pressure Grease Delivery Hose(LT75072ME)
3. High Pressure Grease Delivery Control Valve(LT740ME)
4. Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME) & Air Motor
Muffler(LT2601ME)
5. Steel Container Size: 16"(40.6CM) High by DIA 9
1/2"(24.1CM) Painted in Red & 1/4" (f) NPT threaded fill port at the
container base.
6. Pump Specifications:
Pump Tube Length 15-3/4"(40.01cm) & Diameter 1.0"(2.54CM); Air Motor Height:
11.0"(27.9CM); Overall HT: 28-1/2"(72.4CM)
7. Follower Plate made of steel that fits the inside of
the container.
8. 3 Rigid Steel Clamps that clamp the cover firmly in place on the container
9. Steel Drum Cover with screws that firmly fasten the cover to the base of the pump.
10: Single One Piece Contruction Hand Truck with
6"(15.24CM) DIA Hard Rubber Wheels and Heavy Duty Metal Clamping Strap to hold Barrel
securely in place.
11. Output: 80cu
in/minute (45 oz) of grease at 100PSI of NLGI #2 at 70 Degrees ambient Temperature (.35cu
in/cycle).
12. Air Inlet 1/8"NPT(f); Lube Outlet: 1/4"NPT(f);
13. These High Pressure Grease Pumps incorporate a 20 cu in Air Motor Design.
14: Application: Construction Sites, Maintenance, where bulk
filling is an option and portability is priority and contamination is a problem.
15: New Downtube Packings made of Viton / Teflon for longer
life.
16. Maximum Air
Pressure: 150PSI; Recomended: 80-100PSI; Maximum Grease Pressure: 7500PSI;
Recomended: 5000 PSI; Note: Pump life reduces considerably if operating above the
recommended air pressure.
17. One year Warranty against Defective Materials, Workmanship and
Labor.
18. All Pumps are Pressure Tested Statically and Dynamically in
NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality.
19. Additional ACC Available: LT82103ME Grease Strainer for
Pump Tube; “Z” Swivel LTA5253ME for Control Valve; LT66645ME Locking
Swivel 1/4"(m)x 1/4"(f)
20. Optional Hoses
Available(See Below):
LT75120ME 10ft(3.04mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m)
LT75240ME 20ft (6.09 mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m)
LT75360ME 30ft ((9.14mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m)
LT75480ME 40ft (12.2mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m)
LT75600ME 50ft (15.2mtrs) X ¼” HP Grease Hose w/ 1/4" NPT(m)
21. Complete Repair Kits Parts
Available:
R83054M: Simple Repair Kit for Grease Pumps
R83054ME; Complete Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82716ME
R83001ME: Down Tube Repair Kit for LT82716ME
22. Other Information: Weight and Dimensions:
BOX Weight: 30LBS (13.6KG); BOX DIMS: Length: 30.5"(77.5cm) X Width:14"(35.6cm)
X Height: 13"(33.1cm)
23: Price
24. Download Complete pdf file on LT346TPMME
